One of our business activities is a transportation of various Ro-Ro cargos worldwide. We know how to handle Ro-Ro and we do like dealing with sophisticated oversized project cargoes. We can offer our customers best Ro-Ro tariffs and required terms for their projects.
What is Ro-Ro?

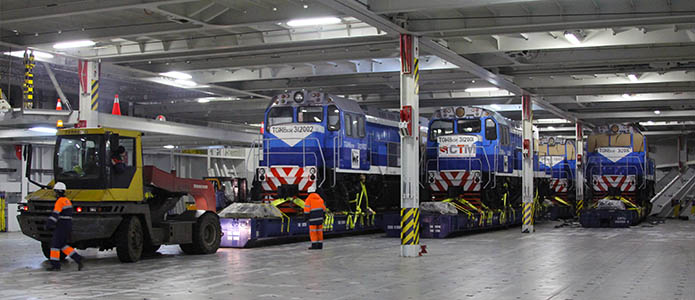

Roll-on/roll-off (RORO or Ro-Ro) ships are vessels designed to carry wheeled cargo, such as automobiles, trucks, semi-trailer trucks, trailers, and railroad cars, that are driven on and off the ship on their own wheels or using a platform vehicle, such as a self-propelled modular transporter. This is in contrast to lift-on/lift-off (LoLo) vessels, which use a crane to load and unload cargo. RORO vessels have built-in ramps that allow the cargo to be efficiently rolled on and off the vessel when in port.
 |
Contact an employee
commercial department
8 800 100 87 64 |
Types of Ro/Ro vessels:
- PCC – Pure Car Carriers – capable of carrying only cars and light trucks;
- PCTC – Pure Car Truck Carriers – universal type of vessels;
- Ro/Ro – Heavy ramp capacity vessels with few decks only;
Types and dimensions of roll-trailers (mafis)
| Roll-trailer | Roll-trailer Length | Roll-trailer Width | Roll-trailer Height | Max Cargo Weight |
| 20 feet | 6.1m | 2.50m | 0.60m | 25 tonnes |
| 30 feet | 9,2m | 2.80m | 0.90m | 160 tonnes |
| 40 feet | 12.2m | 2.60m | 0.70-0.80 (100t)0.84m (120t) | 120 tonnes |
| 62 feet | 18.9m | 2.55m | 0.85m | 100 tonnes |
| 72 feet | 22.0m | 2.80m | 0.86m | 90 tonnes |
| 80 feet | 24.4m | 2.80m | 0.86m | 90 tonnes |

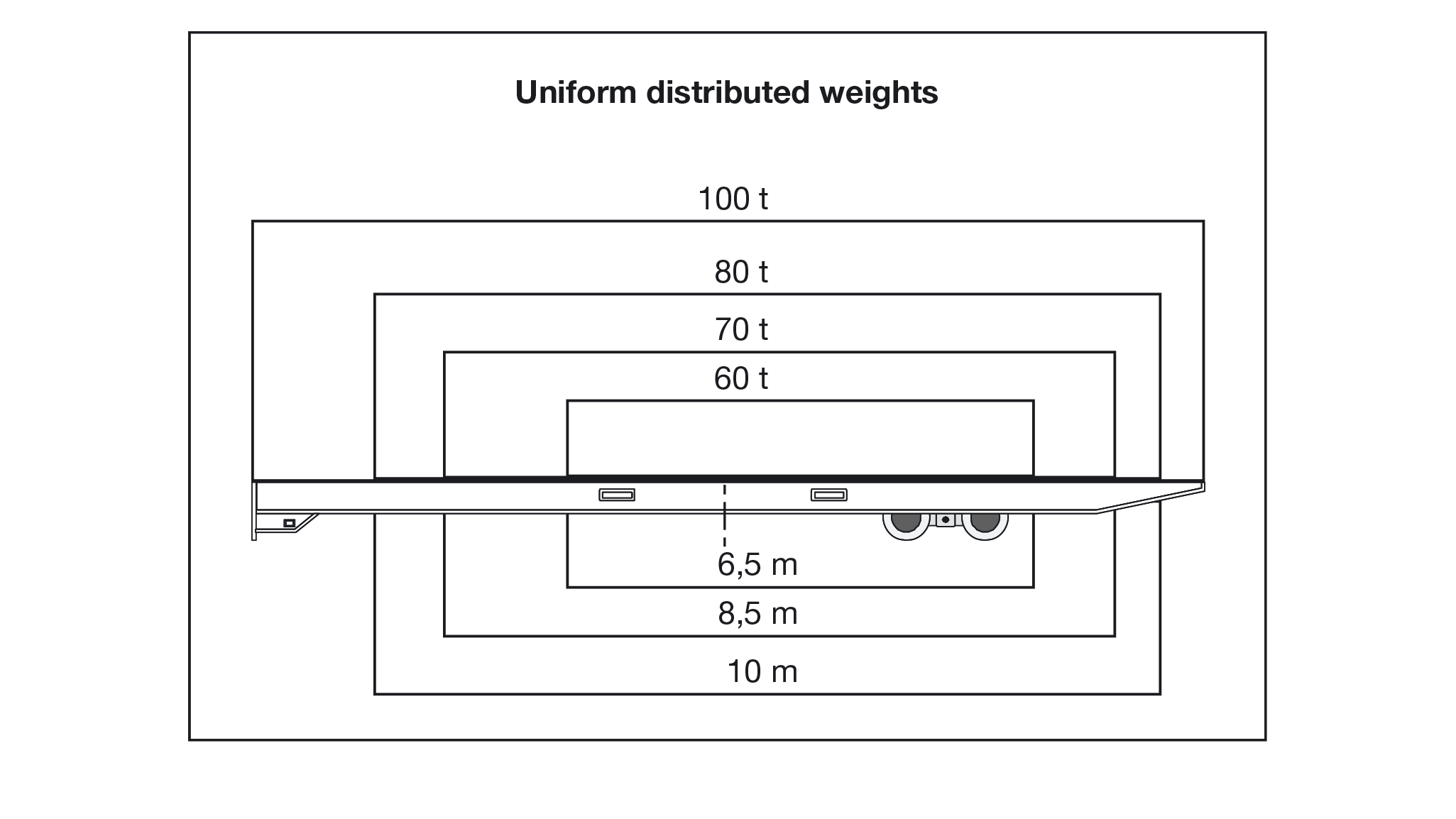

Weight distribution on a 40’ft mafi with 100t capacity
Ro-Ro glossary
| POL: Port of Loading | POD: Port of Discharge | w/m: Weight / measurement – freight in tons or volume in cbm (whichever is bigger ) is used as a base for rate calculation |
| Lump sum: Total amount (freight) per unit or piece | CBM: Cubic meters | SQM: Square meters |
| LWH: Length x Width x Height | Roll-trailer (mafi): Trailer for loading high and heavy cargo | Tugmaster: Pulling tractor for handling of roll-trailer |
| Gooseneck: Large hook that connects tugmaster and roll-trailer | Terminal tractor: Pulling tractor with less lifting height than tugmaster | Self propelled unit: Unit that can be driven without support |
| Tracked unit: Unit without wheels, moving on either steel or rubber tracks | ISPM: Rules regarding treatment of wood packaging / dunnage |
